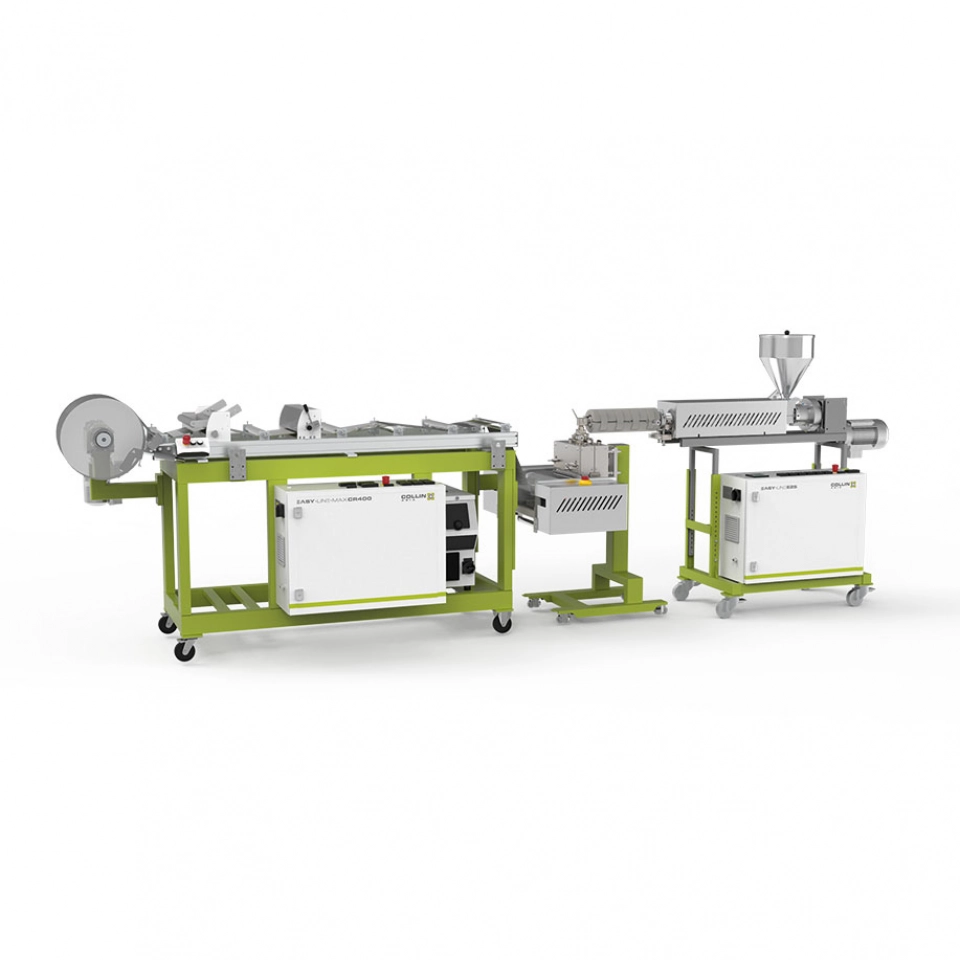

The EASY LINE MAX Flat Film Line CR 400 is a two chill roll unit with horizontal arrangement of the roller group that allows the simulation of all known processes of cast film.
Applications
- Casting of common, non corrosive, commercially available polymers.
Features
- 2 Extruder sizes are possible: ø25x30D and ø30x30D
- Slot Die type SD 350 with flex lip, adjustable die gap 0.3-1.5mm, vertical die arrangement, optional lip heating
- 3” pneumatic winding shaft in cantilever design
- Roller width 400 mm
Technical data
- Web speed 3-30 m/min
- Max. operation temperature of extruder and die: 300°C
Advantages
- Compact machine, ergonomic design
- Easy operation
- Moveable machinery, because on wheels
